Intel® Quark™ SoC X1000

Quark™ SoC X1000 family Lineup

$250

SmallScale

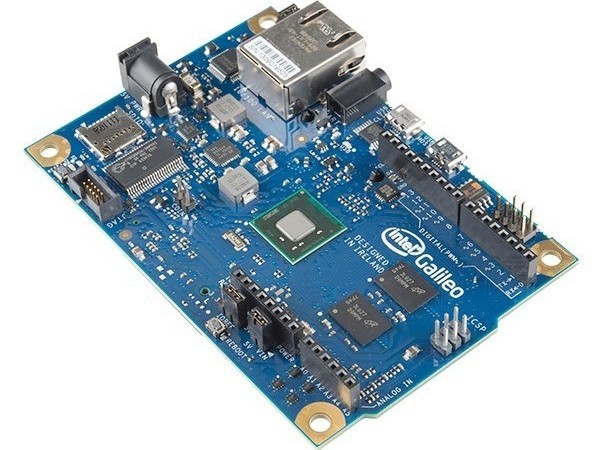

Galileo Gen 1

Entry level board with linux capabilities. Supports PoE and audio. Hosts micro SD, PCIe, 20 digital I/Os, 6 Analog input pins, micro USB OTG, no ICSP and JTAG header. Suitable for applications with audio and no video or USB UART requirements.

$199

SmallScale

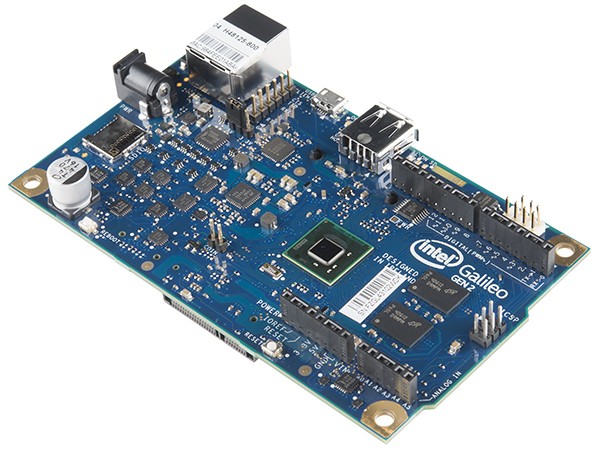

Galileo Gen 2

Low-cost board with with linux capabilities. Supports PoE. Hosts USB 2.0, micro SD, PCIe, 20 digital I/Os, 6 Analog input pins, micro USB OTG, ICSP and JTAG header. Suitable for applications without audio, video, and USB UART requirements.

NS-T® offers Intel® Galileo SoCs, a series of development boards based on the on the Intel® QuarkTMSoC X1000 application processor with a 32-bit architecture. This board appears as an only advanced, more powerful version of Arduino Uno layered on top of a Linux system. Galileo is the first board based on Intel® architecture designed to be hardware and software pin-compatible with shields designed for the Arduino Uno R3. With this architecture, even though it is a single-threaded system, it has the ability of functioning as a multi-threaded device with Linux running in the background and an Arduino shield running in the core which makes Galileo a very competative choice.
