Kintex® / Vertex® FPGA Family Lineup
$18,995

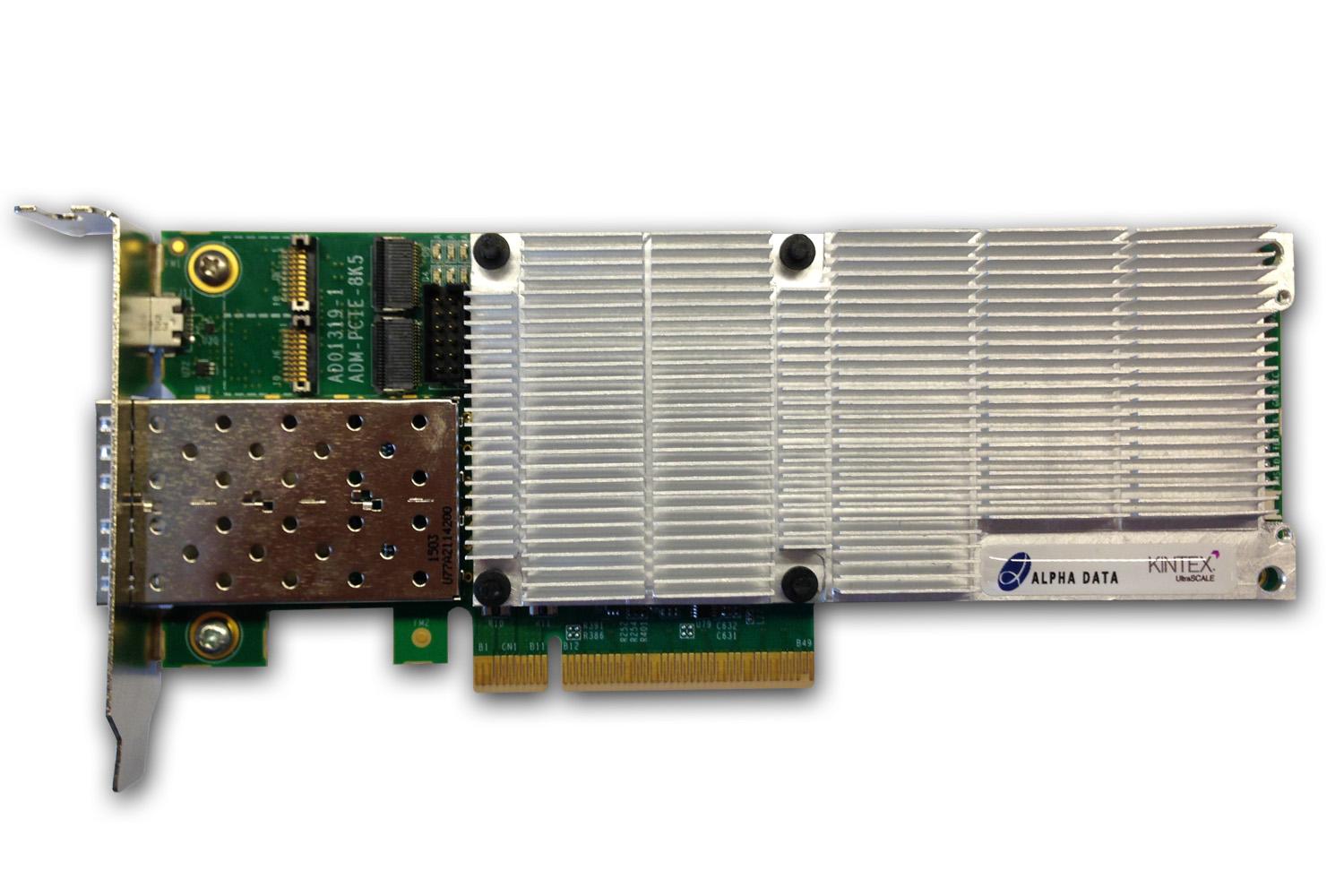

Kintex® (ADM-PCIE-8K5)
UltraScare board for applications requring High-Performance Data Processing, Video Processing, Machine Learning, High Performance Computing (HPC), Network Acceleration.
$17,975

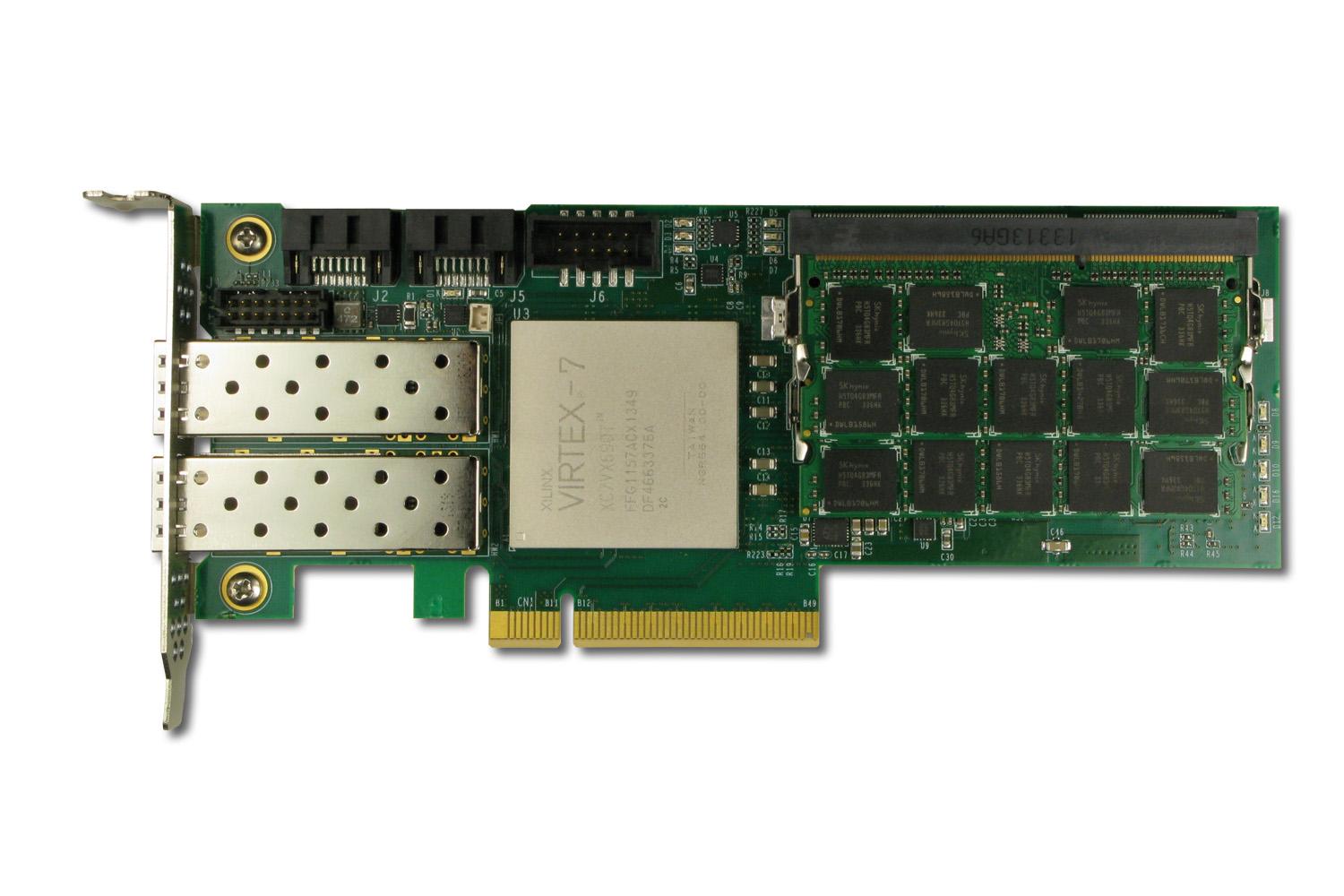

Virtex® (ADM-PCIE-7V3)
UltraScare board suitable in Data Center, Network Accelerator, High Performance Computing (HPC), Data Processing, System Modeling, Market Analysis applications.
$31,980

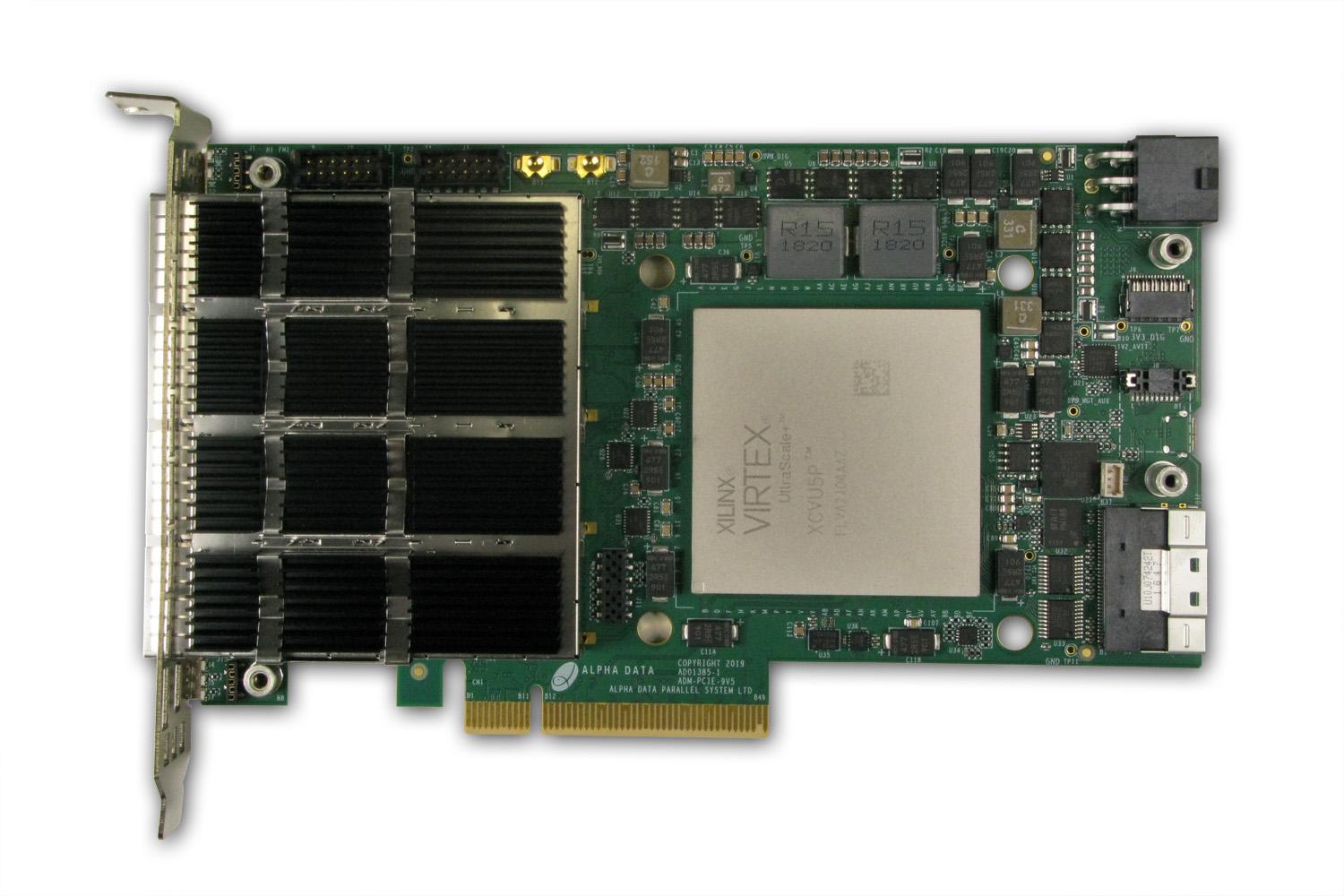

Virtex® (ADM-PCIE-9V5)
UltraScare board suitable for Low Latency Trading, In-Network Compute, High-Frequency Trading, High-speed Communications Hub.
NS-T® options from the Xilinx UltraScale family feature powerful and efficient compution units for large scale designs. Speak with an NS-T® service representative about the scale of your project and to learn more about our Kintex® and Vertex® platforms.
| ADM-PCIE-8K5 | ADM-PCIE-7V3 | ADM-PCIE-9V5 |
|---|---|---|
| UltraScale | UltraScale | UltraScale Plus |
| $8,000 | $7,500 | $65,000 |
| XCKU115-2FLVA1517E | XC7VX690T-2FFG1157C | XCVU9P-3FLGA2104, XCVU5P-3FLVA2104 |
| 663k LUTs | 1326k FFs | 5520 DSPs | 75.9 Mb BRAM | 693k LUTs | 886k FFs | 3600 DSPs | 52.9 Mb BRAM | 1182k LUTs | 2364k FFs | 6840 DSPs | 75.9 Mb (36 Mb) BRAM | 270.0 Mb (132.2 Mb) URAM |
| 2x 1G x 72 (8GiB) DDR4-2400 | 2x ECC-SODIMMs 1G x 72 (8GiB) DDR3-1333 | |
| 2kb I2C EEPROM; BPI 1GBit Flash | BPI 1GBit Flash | QSPI 2GBit Flash |
| 2 x 512MBit zones | 4 x 256MBit zones | 9x 150G Interlaken cores (6 on VU5P-3) |
| 2x SFP+ 1x16Gbps | 2x SFP+ 1x14Gbps | 4x QSFP-DD 8x28Gbps |
| HPC | HPC | HPC |
| 4x16Gbps - PCIe | 6x PCI Express x16 Gen3 cores (4 on VU5P-3) | |
| 2x Firefly Connector | 2x SATA Interfaces | 1x Ultraport SlimSAS 8x25Gbps; 1x Firefly 4x28Gbps |
| 10G Ethernet | 10G Ethernet | 10/25/40/100G Ethernet |
| USB/JTAG | USB/JTAG | USB/JTAG |
| PCIe Gen3 x8 | PCIe Gen3 x8 | PCIe Gen3 x8 or OpenCAPI |
| HDMI | HDMI | HDMI |
| HDMI audio | HDMI audio | HDMI audio |
